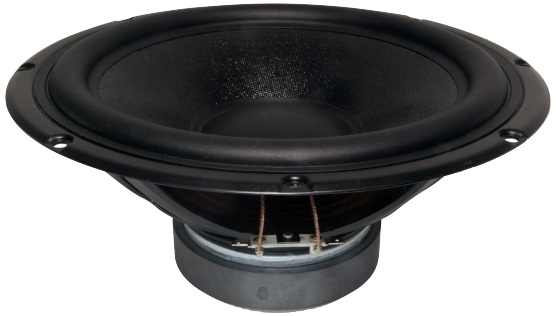

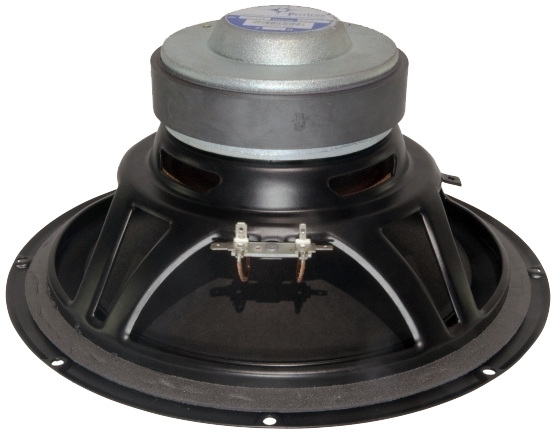

Peerless by Tymphany FSL-1020R02-08 Professional 10" Woofer 8 Ohm
Original price was: $91.$85Current price is: $85.
Peerless SLS-P830668 8Ω
Original price was: $91.$85Current price is: $85.
75 in stock
Description
10″ / 254 mm
| Resonance | 35 Hz |
| Q factor | 0.59 |
| Sensitivity | 87.7 dB |
| Linear excursion | ± 10.9 mm |
| Program Power | 140 W |
264-1110-tymphany-sls-p830668-spec-sheet
.jpg)
Available on (affiliate link)
Specifications
- Sensitivity (1W, 1m, infinite baffle)SPL1W87.7dB
- Frequency response30 – 800Hz
Thiele & Small parameters
- Resonance frequency (free air)fS35Hz
- Mechanical quality factorQMS7.28
- Electrical quality factorQES0.65
- Total quality factorQTS0.59
Large signal parameters
- Maximum linear excursionxmax10.9mm
- Air volume displaced at xmaxVD377cm³
- Power handlingP70W
- Program powerPmax140W
Voice Coil
- Nominal impedanceZ8Ω
- DC resistanceRE5.6Ω
- Inductance (1kHz)LE1.46mH
- VC Diameter38.4mm
Magnet
- Force factorBl10.3N/A
- Motor constantBl/√RE4.35N/√W
- Air gap heightHAG8mm
- MaterialFerrite
Diaphragm
- Effective diameter210mm
- Effective areaSD346cm²
- Moving massMMS57.3g
- Moving mass (without air load)MMD52.7g
- MaterialCoated Paper
Suspensions
- StiffnessKMS2.7N/mm
- ComplianceCMS370µm/N
- Equivalent volume to the complianceVAS62.9L
- Mechanical resistanceRMS1.73N·s/m
- Surround materialRubber
Dimensions
- Nominal diameter10″
- 254mm
- Volume occupied by the driver (estimated)1.1L
- Net weight2.7kg
- Frame materialPressed Steel
.png)
.png)
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 34 × 25 × 20 cm |
