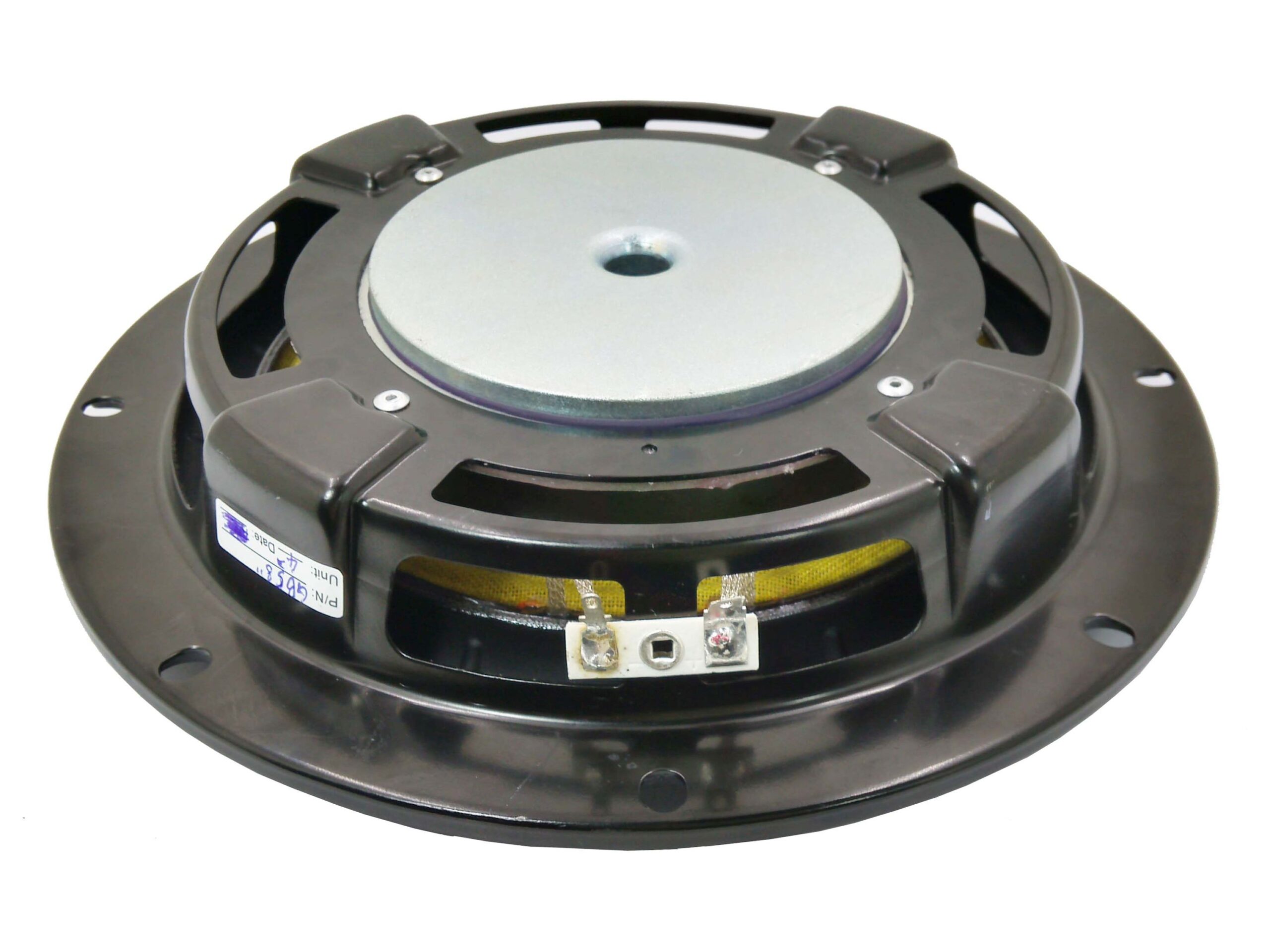

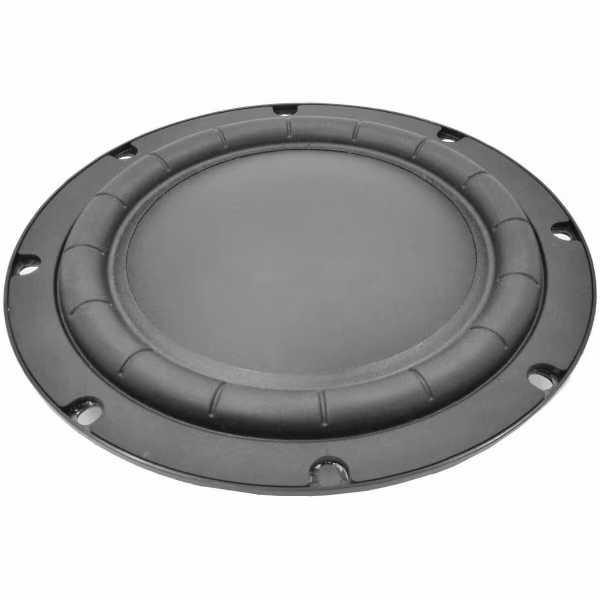

Peerless by Tymphany GBS-200F35CP02-04 8″ Paper Cone Woofer 4 Ohm
Original price was: $60.$56Current price is: $56.
Peerless by Tymphany GBS-200F35CP02-04 8″ Paper Cone Woofer 4 Ohm
The GBS-200F35CP02-04 is a member of the GBS family provides a very slim woofer capable of large excursion. A highly optimized ferrite motor and unique suspension layout combine to give a cost effective solution in a previously unavailable package.
Product Details | |
|---|---|
| Brand | Peerless by Tymphany |
| Model | GBS-200F35CP02-04 |
| Part Number | 264-1490 |
| UPC | 848864045344 |
| Unit of Measure | Each |
| Weight | 5.02 |
Product Specifications | |
|---|---|
| Nominal Diameter | 8″ |
| Power Handling (RMS) | 150 Watts |
| Power Handling (MAX) | 300 Watts |
| Impedance | 4Ω |
| Sensitivity | 86.2dB 2.83V/1m |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 41.8Hz |
| DC Resistance (Re) | 3.52Ω |
| Voice Coil Inductance (Le) | 1.81mH |
| Mechanical Q (Qms) | 4.63 |
| Electromagnetic Q (Qes) | 0.43 |
| Total Q (Qts) | 0.39 |
| Compliance Equivalent Volume (Vas) | 0.53ft³ |
| Mechanical Compliance of Suspension (Cms) | 217mm/N |
| BL Product (BL) | 12T·m |
| Diaphragm Mass Inc. Airload (Mms) | 66.8g |
| Maximum Linear Excursion (Xmax) | 5.2mm |
| Surface Area of Cone (Sd) | 221.7cm² |
Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.38ft³ |
| Sealed F3 | 87.5Hz |
| Vented Volume | 0.75ft³ |
| Vented F3 | 37.1Hz |
Out of stock
The GBS-200F35CP02-04 is a member of the GBS family provides a very slim woofer capable of large excursion. A highly optimized ferrite motor and unique suspension layout combine to give a cost effective solution in a previously unavailable package.
| Weight | 5 kg |
|---|---|
| Dimensions | 34 × 24 × 18 cm |
