Peerless FSL-1530R01-08 – 15″ Woofer 8Ω
Original price was: $143.$120Current price is: $120.

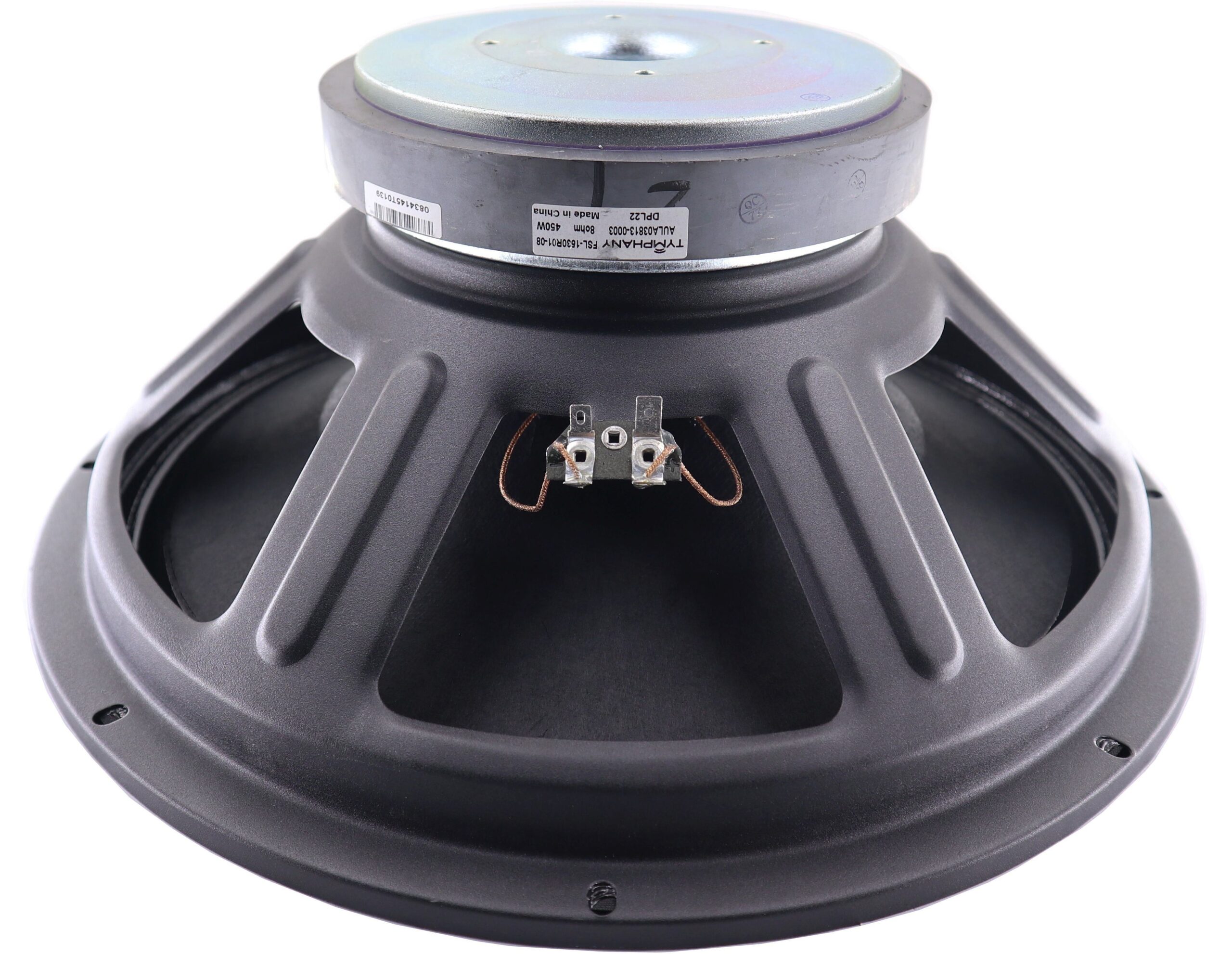

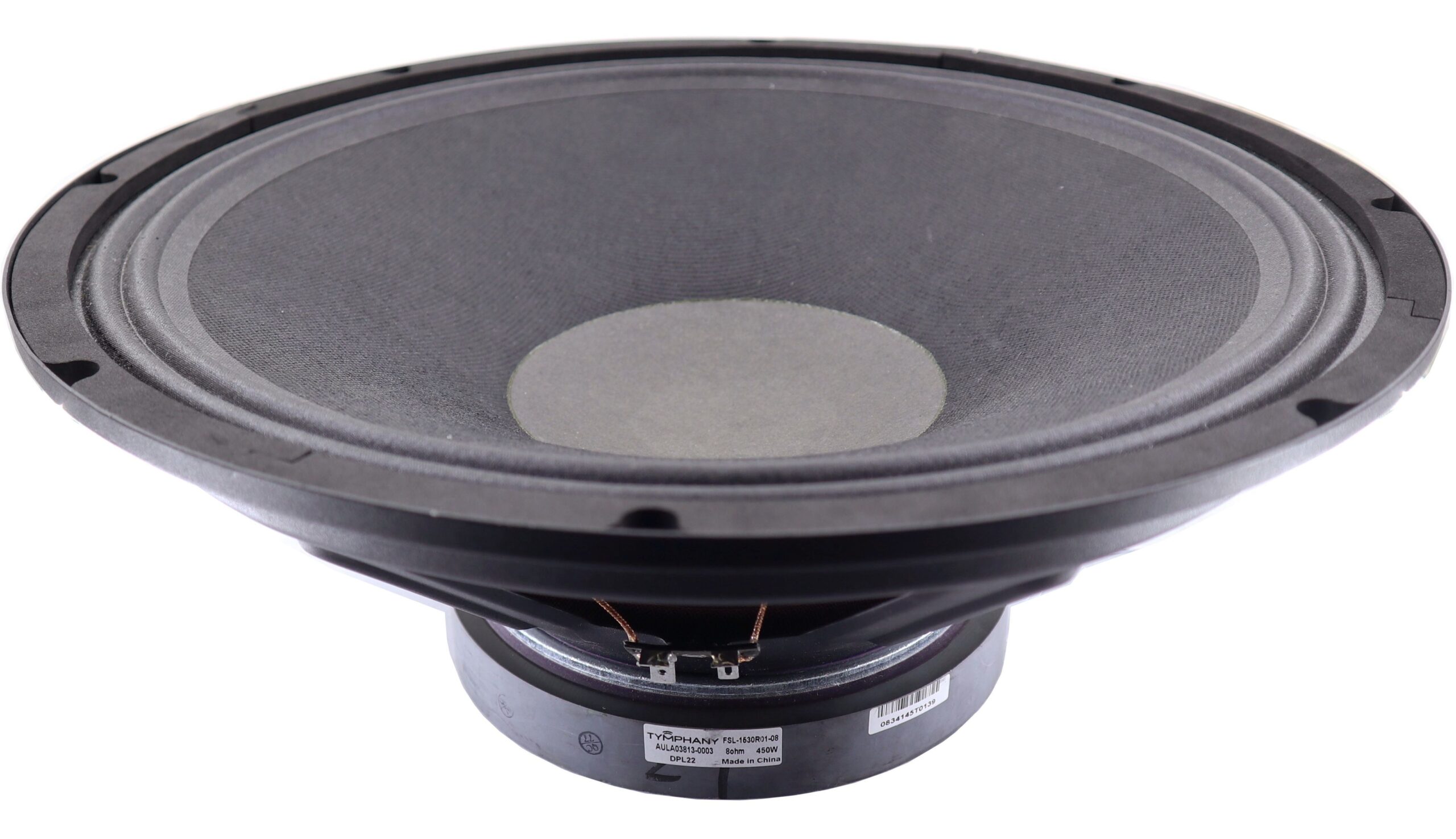

This 15 inch 8 ohm speaker features a FEA optimized ferrite magnet motor, 2.5inch voice coil, cloth surround, paper cone, a vented yoke for motor cooling, and a high strength stamped steel frame.
Kevlar loaded non-pressed paper cone to help dampen and control cone resonance. The multi-roll surround and spider have been optimized to reduce distortion over the excursion range of this transducer.
General | |
| Product type | Cone driver |
| Brand | Peerless |
| Product code | T04-1B0150002 |
Informations | |
| Nominal impedance | 8 ohm |
| Dimensional category | 15 inch |
| Frequency coverage type | Sub, Low, Midbass |
| Manufacturer sensitivity | 98.05 dB |
| Calculated sensitivity | 98.89 dB |
| Nominal power handling | 350 W |
| Bandwidth | 40÷400 Hz |
Fundamental parameters | |
| Sd | 866 cm² |
| Mms | 87.41 gr |
| Cms | 170 µm/N |
| Le | 1.19 mH |
| Re | 5.25 ohm |
| BL | 21.76 T.m |
Small signal parameters | |
| Fs | 41.3 Hz |
| Qes | 0.25 |
| Qms | 4.98 |
| Qts | 0.24 |
| Vas | 179.83 L |
Datas | |
| Xmax | ±4.67 mm |
| Xvar, Xmech, Xlim | ±19.63 mm |
| EBP | 165 Hz |
| Zmin | 6.73 ohm |
| Fs / Qts | 172 Hz |
| Vas * Qts² | 10.36 L |
| Calculated efficiency | 4.87 % |
| Weight | ~6.3 kg |
Dimensions | |
| Voice coil diameter | 2.98 inch |
| Outside diameter | 384.8 mm |
| Baffle cutout diameter | 349.95 mm |
| Front thickness | 10 mm |
| Depth after front | 147.3 mm |
Shape & Materials | |
| Front chape | Cylindrical |
| Magnet type | Ferrite |
| Weight | 7 kg |
|---|---|
| Dimensions | 34 × 32 × 23 cm |
