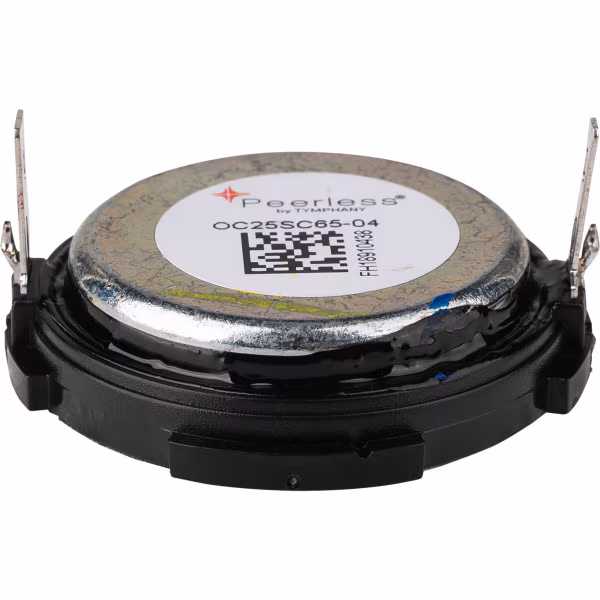

Peerless by Tymphany OC25SC65-04 1″ Textile Dome Tweeter
Original price was: $20.$16Current price is: $16.
OC25SC65-04 Rev2 MP1 – Product Sheet – OC25SC65-04.Rev2.MP1 – Product Sheet (1)
Peerless by Tymphany OC25SC65-04 1″ Textile Dome Tweeter
The OC25SC65-04 tweeter features a coated textile diaphragm, high-energy neodymium magnet, and does not include a faceplate. Perfect for custom mounting to waveguides or other unique design requirements. Ferrofluid in the magnetic gap improves driver cooling.
Product Details | |
|---|---|
| Brand | Peerless by Tymphany |
| Model | OC25SC65-04 |
| Part Number | 264-1018 |
| UPC | 844632083709 |
| Unit of Measure | Each |
| Weight | 0.1 |
Product Specifications | |
|---|---|
| Cone / Dome Diameter | 1″ |
| Cutout Diameter | 1.52 |
| Tweeter Type | Soft Dome |
| Power Handling (RMS) | 25 Watts |
| Impedance | 4Ω |
| Frequency Response | 1,300 to 20,000Hz |
| Sensitivity | 96.23dB 2.83V/1m |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 1382Hz |
| DC Resistance (Re) | 3Ω |
| Voice Coil Inductance (Le) | 0.02mH |
| Mechanical Q (Qms) | 4.07 |
| Electromagnetic Q (Qes) | 1.83 |
| Total Q (Qts) | 1.26 |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 1.62″ |
| Depth | 1″ |
OC25SC65-04 Rev2 MP1 – Product Sheet – OC25SC65-04.Rev2.MP1 – Product Sheet (1)
Key Features
- Faceplate-less design for custom mounting
- Smooth, extended response and high efficiency
- 1″ textile dome
- Ferrofluid cooled voice coil
- Self-shielding neodymium motor
