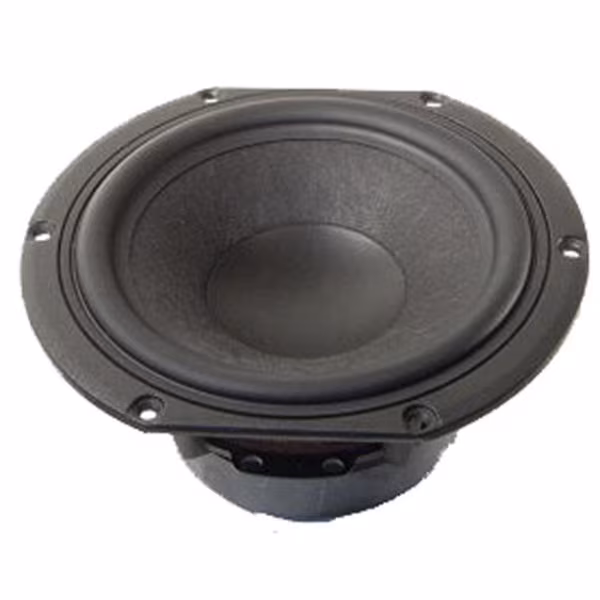

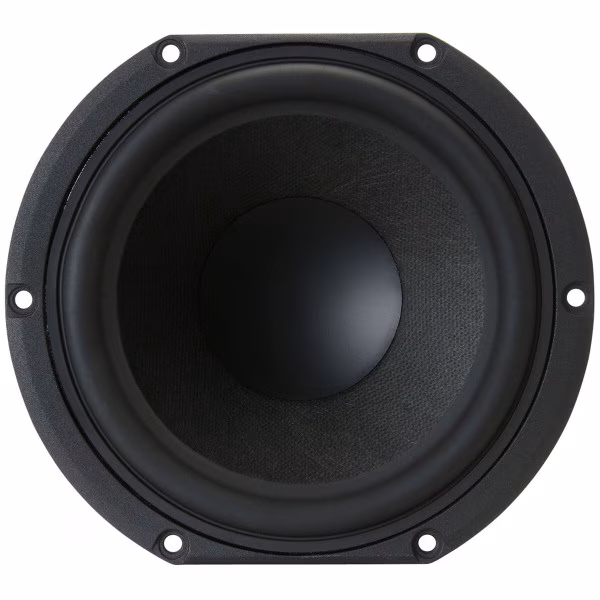

Peerless by Tymphany HDS-P830875 6-1/2″ Nomex Cone HDS Woofer
Original price was: $78.$71Current price is: $71.
Peerless by Tymphany HDS-P830875 6-1/2″ Nomex Cone HDS Woofer
The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments. A powerful ferrite magnet system is coupled to a finite element analysis-designed suspension system, containing a linear spider design and rubber surround. The motor incorporates an aluminum shorting ring that reduces coil inductance, extending frequency response performance and reducing second harmonic distortion. A cast aluminum basket provides high structural rigidity, heat-sinking capacity for the motor, and additional ventilation under the spider that in combination with a vented cone neck reduces air compression effects. The famous Peerless Nomex cone offers neutral, accurate audio reproduction.
Product Details |
|
|---|---|
| Brand | Peerless by Tymphany |
| Model | HDS-P830875 |
| Part Number | 264-1092 |
| UPC | 844632084072 |
| Unit of Measure | Each |
| Weight | 3.65 |
Product Specifications |
|
|---|---|
| Nominal Diameter | 6-1/2″ |
| Power Handling (RMS) | 75 Watts |
| Power Handling (MAX) | 100 Watts |
| Impedance | 8Ω |
| Frequency Response | 40 to 3,000Hz |
| Sensitivity | 89.5dB 2.83V/1m |
| Voice Coil Diameter | 1.25″ |
Thiele-Small Parameters |
|
|---|---|
| Resonant Frequency (Fs) | 46Hz |
| DC Resistance (Re) | 7.18Ω |
| Voice Coil Inductance (Le) | 0.41mH |
| Mechanical Q (Qms) | 3.2 |
| Electromagnetic Q (Qes) | 0.41 |
| Total Q (Qts) | 0.36 |
| Mechanical Compliance of Suspension (Cms) | 0.76mm/N |
| BL Product (BL) | 8.95T·m |
| Maximum Linear Excursion (Xmax) | 5.3mm |
| Surface Area of Cone (Sd) | 143.1cm² |
Materials of Construction |
|
|---|---|
| Cone Material | Nomex |
| Surround Material | Rubber |

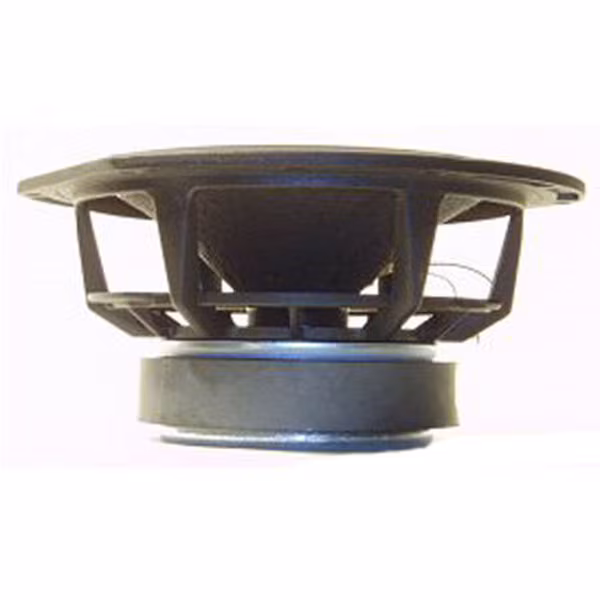

| Basket / Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
Mounting Information |
|
|---|---|
| Overall Outside Diameter | 7.17″ |
| Baffle Cutout Diameter | 5.75″ |
| Depth | 3.27″ |
| # Mounting Holes | 6 |
| 264-1092–tymphany-hds-p830875-spec-sheet | |
|---|---|
| Sealed Volume | 0.2ft³ |
| Sealed F3 | 101.4Hz |
| Vented Volume | 0.4ft³ |
| Vented F3 | 61Hz |
Key Features
- Truncated cast aluminum frame
- Nomex cone with half-roll rubber surround
- Long-throw voice coil
- Shorting rings for reduced distortion
- Under-spider and voice coil ventilation264-1092–tymphany-hds-p830875-spec-sheet
| Weight | 3 kg |
|---|---|
| Dimensions | 24 × 19 × 16 cm |
